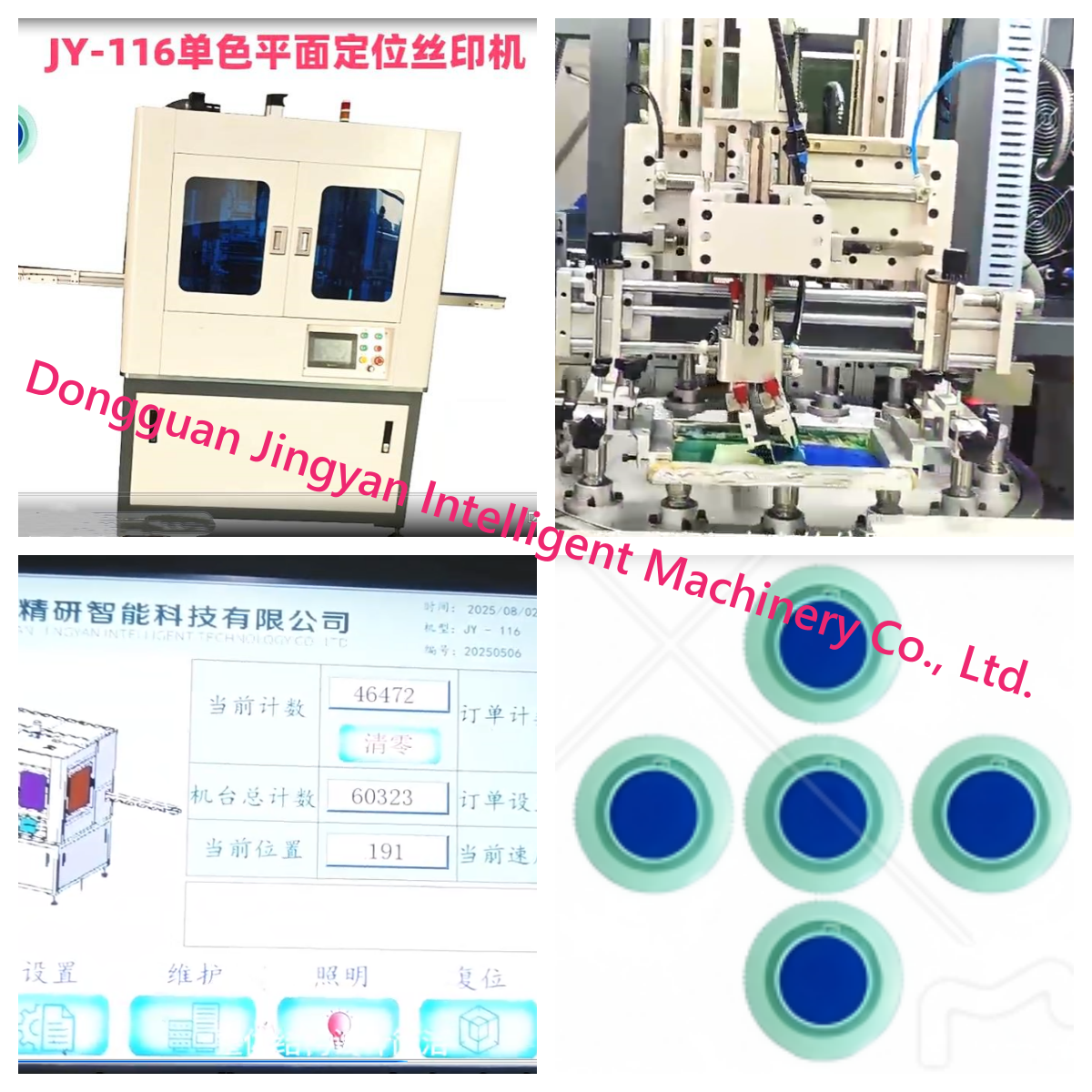

JY-116 Flat-Panel Single-Color Positioning Screen Printer

JY-116  Flat-Panel Single-Color Positioning Screen Printer

1， Equipment Features:

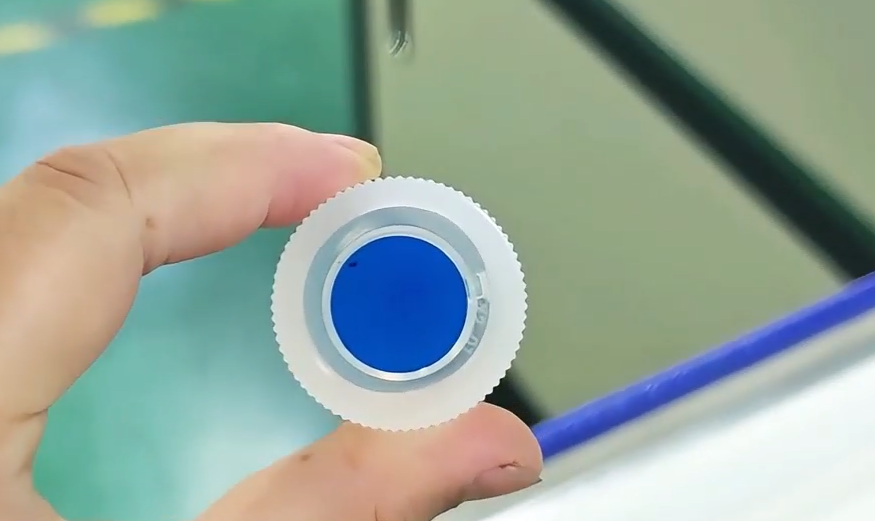

This machine is suitable for positioning printing on the tops of cylindrical, square, and other shaped products, such as wine caps,  cosmetic caps, and beverage caps. The equipment operates efficiently and stably, can accurately position printing at speeds of up to 45-50 pieces per minute, and is easy to operate and maintain.

2， the technical points and process flow of the equipment:

1) The caps to be printed and coded are manually placed on a manual loading platform, where they are slowly transported forward by a conveyor belt to the infeed

and  outfeed conveyors.

2) The workpieces are transferred to the infeed robot positioning module. After sensing, the robot grabs and loads the workpieces, clamping them to the turntable

fixture.

3) The 16-station rotary turntable rotates sequentially, performing stamping, electrostatic dust removal, surface treatment, photoelectric pre-positioning,

photoelectric precision positioning, screen printing, LED UV curing, robotic unloading, conveyor delivery, and manual collection, placement, and packaging.

4) This continuous cycle ensures efficient production.

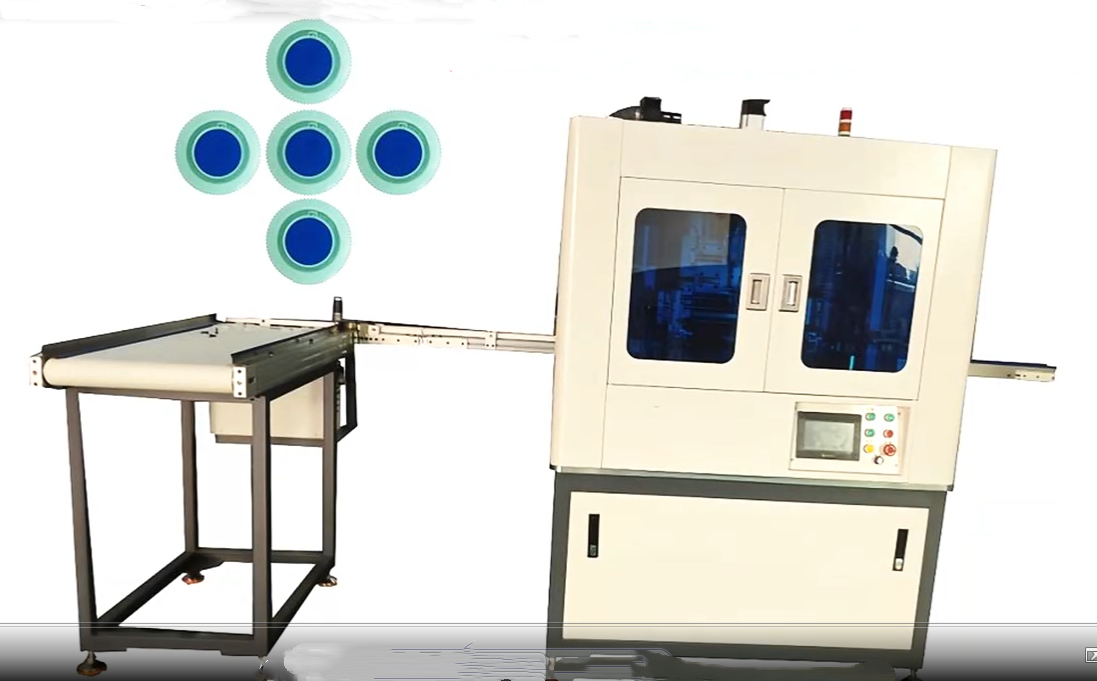

3， Equipment appearance display:

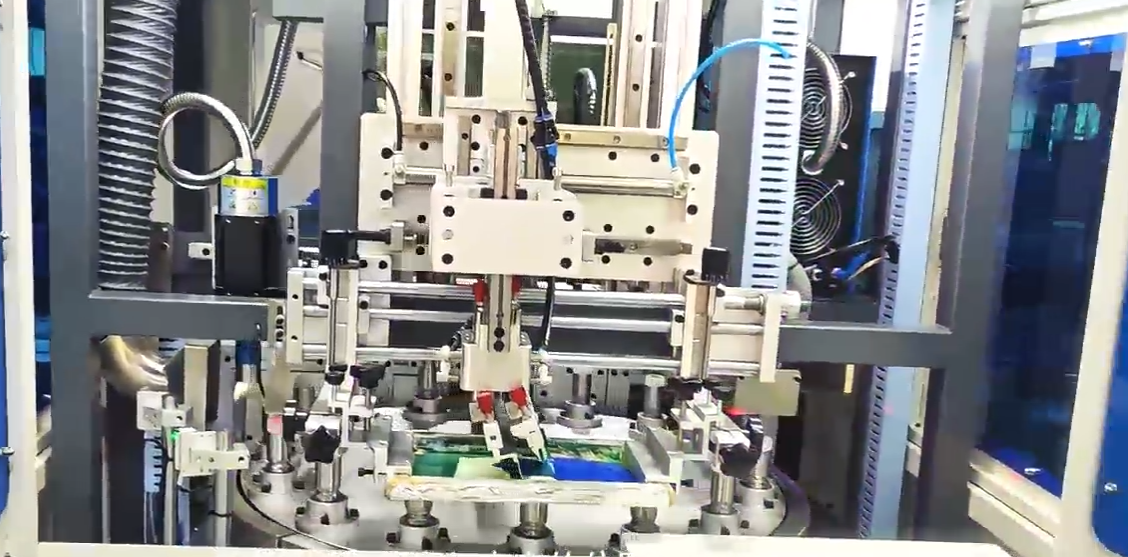

4， Equipment details display:

5， Equipment Technical Parameters:

1. Printing Target: Designed based on the provided lid.

2. Printing Color: Monochrome

3. Printing Speed: 45-50 pcs/minute (2700-3000 pcs/hour depending on actual ink)

4. Power Supply: 3∅ 380V 50Hz 7.5kW

5. Air Pressure: 5-7bar

6，Storage and use environment of the equipment:

7, the scope of application of the product:

8. Our services:

① Our engineers can provide door-to-door service if necessary.

② We will provide test videos and related test standards before delivery.

③ Please confirm that the machine is in good condition and debugged before delivery.

④ We provide a 12-month host warranty.

⑤ The product has passed the quality system and CE certification.

⑥ We provide 24-hour online customer service.

⑦ Provide the material list of wearing parts free of charge.

9, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,   so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation equipment integrating production and sales. We have professional scientific research

personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

10, our advantages:

① Our technical team has accumulated 20 years of R&D and production experience in the industry.

② Our after-sales team has 16 years of experience in after-sales service related to screen printing,  so there is no worry about after-sales.

③ We are a manufacturer specializing in the production of high-end screen printing automation equipment integrating production and sales.We have professional scientific research personnel.

④ We have a dedicated after-sales guarantee service team to solve all problems for you in time.

11，International Shipping Packing:

12，After-sales service:

• Well maintained, machine has a life of more than 10 years.

• Main components are international famous brands,

• Our machine operation concept is guaranteed by patent technology.

• The whole machine is guaranteed for one year, and the main parts are replaced free of charge during the warranty period (except for

         man-made damage and vulnerable parts).

• After-sales professional engineers provide technical guidance and and provide lifetime  technical support.

  ---
